About This

• Upgraded AHD 1080P Backup Camera- The Backup Camera with Lastest 1/2.7 AHD Chipest, which support both AHD and CVBS singal output. Compare to ordinary backup cam, not only improved a lot for image clearly, but also enhanced brightness and color saturation, improve the color distortion, the colors become more true.
• Super Night Vision Rear View Camera- It supply a Starlight level night vision (0.005Lux,excellent low-light performance), makes your reversing more safety in dark night, rainy day , snow day.

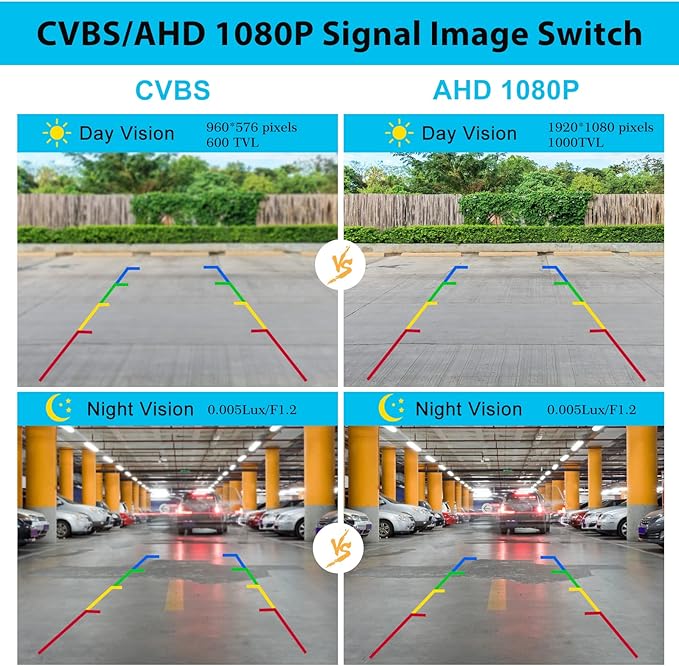

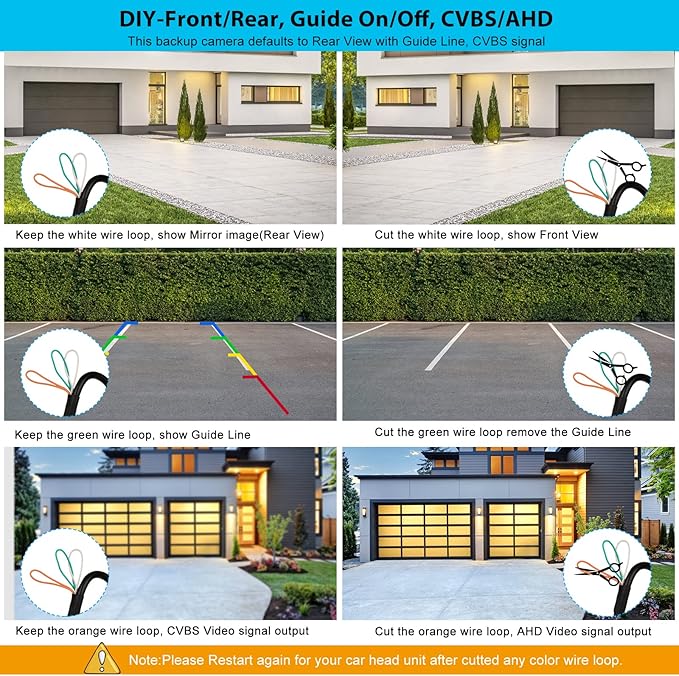

• Support AHD and CVBS Switch- The Rear View Camera support AHD and CVBS switching. If your car radio palyer support AHD signal, you can cut the orange wire loop to change to AHD singal. You also can cut the white wire loop to change to Front Camera, cut the green wire loop to turn off the guide line. PS: Not all of car radio player support AHD singal, pls check it first before buy. IMPORTAT: Please Restart your radio again after you cut wire loops, then the image should be correct.
• 170° Wide Angle 6G Full Glass HD Fish Eye Lens— The Reverse Camera lens with a larger aperture and a stronger sense techonlogy. Compare to ordinary lens, it with High transmittance glass, fish eye appearance, F1.8 aperture, the all makes the camera with more wide angle, maximum output pixels and better night vision performance.
• IP69K Waterproof— The Car Backup Camera made with sturdy full alloy housing(include backup camera and bracket mount), lastest full nano waterproof glue filling process, it will effectively prevent water, fog or mist into the camera. Metal housing also will more stable then comoon plastic shell.

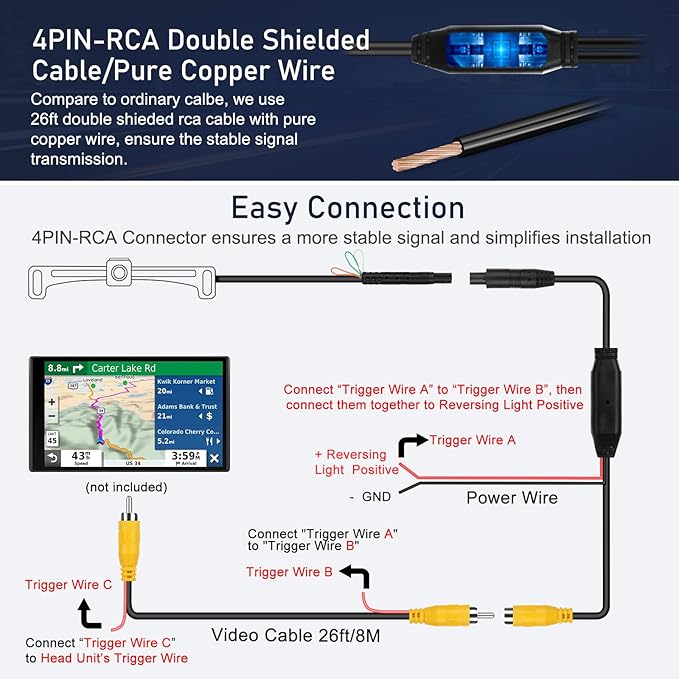

• 4 Pin Connector, Easy to install - 4 pin connect will more easier to pass through the car’s then RCA connector, makes your installation more faster.
• High Quality Shielded Cable--- The 26ft Video cable with copper core will supply a more stable singal .
• Pay More Attention: According to our experience, some cheap or old Android stereos have the setting of AHD video signal input option, but the truth it does not work, because their hardware inside do not support it. If so, please use the default CVBS video signal output (do not cut the orange wire loop, otherwise you will get a black screen)
• For Installation, you can go to Youtube to find videos , many our customers do that. thank you.
• Pay more attetion: After you install the backup camera, or cut any loops, pls restart your monitor or radio. Or, it will not show correct image.

Overview

• Brand : GLK

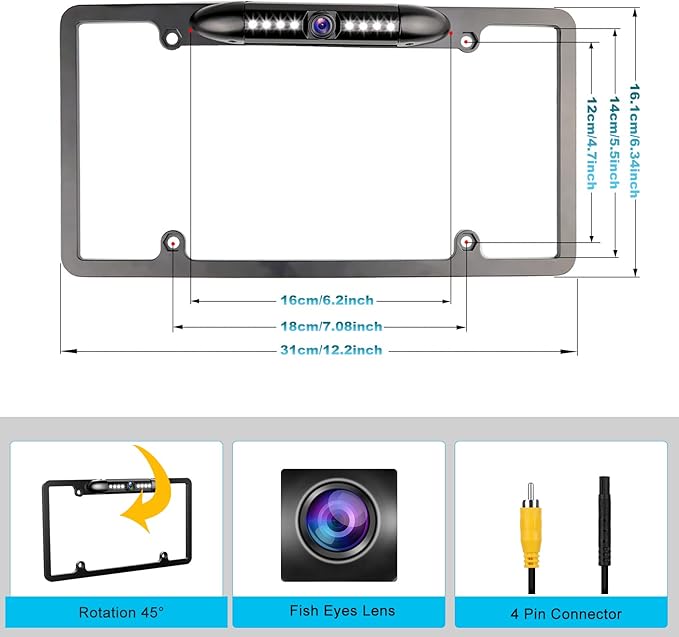

• Product Dimensions : 12.2"L x 6.34"W x 0.31"H
• Compatible Devices : 12-24V cars, Car radio player, Monitor
• Installation Type : Surface Mount
• Voltage : 12 Volts
• Optical Sensor Technology : CMOS
• Lens Type : Wide Angle
• Real Angle of View : 170 Degrees
• Connector Type : 4 pin, RCA
• Optical Sensor Size : 1.1 inches
